Bitumen Road Emulsion TECHNONICOL (EBK) is homogeneous low-viscous liquid produced by means of dispersion of bitumen in water solution of emulsifying agent. Such emulsion produced by us belongs to oil-in-water bitumen emulsions. This very type of bitumen is widely used during production of road work of various kinds. Because of its relatively low viscosity the bitumen emulsion provides the most acceptable conditions for treating road construction materials.
Bitumen Road Emulsion TECHNONICOL (EBK) is produced using special equipment and emulsifying agents. It can be of two basic types: oil-in-water and inverted. This classification is based on the form of the composition. Bitumen Road Emulsion TECHNONICOL (EBK) provides an alternative method of storage, transportation and use of bitumen.
It is the safest and most ecological in comparison with traditional ways of use of bitumen, it doesn’t demand high energy consumption and can be used together with cold humid stone materials.
Use
- It is used as a tack coat of the basis during road-building.
- It is used for arrangement of layers of pavement by means of impregnation and surface treatment.
- It is used for arrangement of thin uneven wearing layers.
- It is used as a constituent of an emulsion-mineral mixture during patching.
Brands
Three brands of emulsion are produced depending on the stability during mixing with mineral materials: EBK-1, EBK-2, EBK-3.
EBK-1
EBK-2
EBK-3

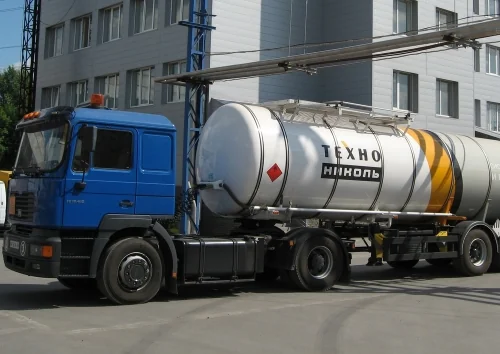

Bitumen Road Emulsions TECHNONICOL (EBK) are transported in tanks, binder distributors, bitumen distributors and metal barrels. It should be stored in tanks and other cylindrical metal containers. Storage containers must be clean, without remains of emulsion, bitumen, fuel and lubrication materials and other acidic or alkaline materials.
It isn’t allowed to pour together emulsions with different compositions into one container. In order to protect bitumen emulsion from getting dirty and losing water, containers should be well closed.
Temperature of emulsion during storage shouldn’t be lower than 5 °С. Depositories for emulsions bigger than 1 м3 should be equipped with a device for transference. “TechnoNICOL” Corporation offers modern building materials corresponding to Russian and European quality standards, including roll roofing materials, bitumen, materials for sound insulation of flats and rooms, repair of a roof.
Types of material
EBK-1
EBK-2
EBK-3
Specifications:
Property | EBK-1 | EBK-2 | EBK-3 | |
Content of astringent with emulsifying agent, % by weight, within the limits | 50-70 | 50-60 | 55-60 | |
Relative viscosity at (20,0±0,5) °С,St, within the limits | 10-65 | 10-25 | 15-25 | |
Stability during blending with mixtures of mineral materials: | dense grain distribution | Doesn’t mix | Doesn’t mix | Mixes |
porous grain distribution | Doesn’t mix | Mixes | Mixes | |
Cohesion with mineral materials, point, no less than | 5 | 5 | 4 | |
Remainder on sieve № 014, % by weight, no less than | 0.25 | 0.25 | 0.25 | |
Storage stability (remainder on the sieve with net № 014), % by weight, no more than | in 7 days | 0.3 | 0.3 | 0.3 |
in 30 days | 0.5 | 0.5 | 0.5 | |
Stability during transportation | Emulsions should not break up into water and astringent | Emulsions should not break up into water and astringent | Emulsions should not break up into water and astringent | |
Penetration of a needle, 0.1 mm, no less than | at 25 °С | 60 | 90 | 90 |
at 0 °С | 20 | 28 | 28 | |
Softening temperature around a circle and a sphere , °С, no less than | 47 | 43 | 43 | |
Stretchability, cm, no less than | at 25 °С | 55 | 65 | 65 |
at 0 °С | 3.5 | 4.0 | 4.0 | |
Flexibility, %, no less than at 25°С | Does not normalize | Does not normalize | Does not normalize |
