TECHNONICOL CARBON PROF

TECHNONICOL CARBON PROF

OS 72746455-3.3.1-2012

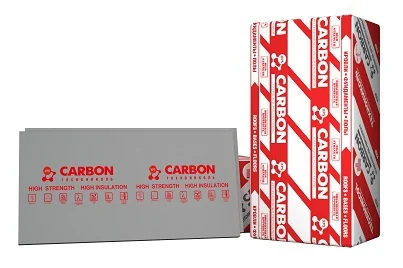

XPS TECHNONICOL CARBON PROF is material for professional builders. It possesses high strength characteristics and has the best thermal conductivity coefficient in the XPS TechnoNICOL line. XPS TECHNONICOL CARBON PROF is used to construct flat roofs in trade and logistical centres, residential areas, foundations of any complexity, load-bearing roofs, and floors on soil. The XPS CARBON PROF line also includes specialist materials for the creation of a slope on a flat roof, XPS TECHNONICOL CARBON PROF SLOPE.

The extruded polystyrene foam TECHNONICOL CARBON PROF is one of the most highly effective thermal insulation materials. Its high strength and low thermal conductivity make this material highly popular in industrial and civil construction.

The production process of XPS TECHNONICOL CARBON PROF makes use of nanoscale carbon particles. Nanocarbon reduces the thermal conductivity of the material and increases its strength. Thanks to being saturated with nanocarbon, panels of XPS TECHNONICOL CARBON PROF acquire a dark silver tone and possess a high energy-efficiency index.

The RF marking is shown on products containing fire-retardant material, reducing the risk of fire.

Scope of application:

The extruded polystyrene foam series TECHNONICOL CARBON PROF is used in general civil construction in installing thermal insulation of foundations, roofs, floors, including load-bearing floors, and insulating facades and base courses. In the majority of TechnoNICOL Corporation system solutions, the use of XPS CARBON PROF line products is recommended

Advantages:

  • High density.
  • Low density in high application properties.
  • Low thermal conductivity provides a means of reducing thickness.
  • Constant quality control in the factory is carried out on modern lines.
  • Contains no flammable or illegal expanding agents.
  • No water absorption.
  • A uniform material structure. System solutions with a full certification dossier.
  • Insured with the Alliance insurance company to 1 million euros.
  • Operational lifespan greater than 50.





Types of material

    TECHNONICOL CARBON PROF 300

    TECHNONICOL CARBON PROF 300 RF

    TECHNONICOL CARBON PROF 400

    TECHNONICOL CARBON PROF 400 RF


Basic physical and mechanical properties

PropertyTECHNONICOL CARBON PROF 300TECHNONICOL CARBON PROF 300 RF TECHNONICOL CARBON PROF 400 TECHNONICOL CARBON PROF 400 RF
Compressive strength at 10% longitudinal deformation, no less than, kPa 300 300 400 400
Thermal conductivity at (255)0C, W/(m*K), no more than 0.028 0.028 0.028 0.028
Thermal conductivity in operational circumstances "A" and "B", W/(m*K), no more than 0.032 0.032 0.032 0.032
Flammability groupG4 G3 G4 G3
Water absorption, no more than, % 0.2 0.2 0.2 0.2
Modulus of elasticity, MPa 17 17 17 17
Vapour permeability coefficient, mg/(m.h.Pa) 0.010 0.010 0.010 0.010
Heat capacity per unit mass, kJ/(kg.C) 1.42 1.42 1.42 1.42
Bend strength, no less than, MPa 0.35 0.35 0.40 0.40
Density, kg/m3, no less than 28-35 28-35 30-36 30-36
Operational temperature,C From -70 to +75 From -70 to +75 From -70 to +75 From -70 to +75
Dimensions* Thickness, mm50,60,80,100 50,60,80,100 80,100 80,100,120
Length, mm1180, 1200, 2380 1180, 1200, 2380 1180, 1200, 2380 1180, 1200, 2380
Width, mm580 580 580 580

— the presence of an “L”-edge prevents the appearance of “thermal bridges” and improves fastening.

*- panels of other sizes can be made by agreement with the customer..

The panels are packaged in a UV-resistant membrane and delivered on pallets.

Storage:

XPS TECHNONICOL CARBON PROF panels can be stored under cover protecting them from atmospheric precipitation and sunlight. During storage under cover, the panels must be laid on pallets, stands, or slats.

XPS TECHNONICOL CARBON PROF panels can be stored in the open air in special packaging protecting them from external atmospheric effects.

Precautionary measures:

Keep away from fire. Chemically unstable on contact with petrol, organic solvents, and bituminous cement with a high organic solvent content.
