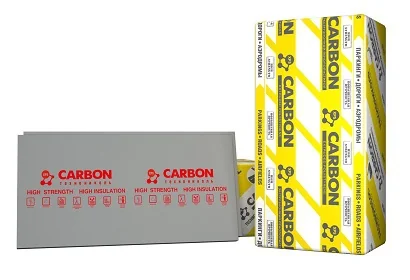

TECHNONICOL CARBON SOLID

TECHNONICOL CARBON SOLID

OS 72746455-3.3.1-2012

The extruded polystyrene foam TECHNONICOL CARBON SOLID is a thermal insulation material with uniformly distributed closed cells for thermally insulating load-bearing floors, railways, and roads. XPS TECHNONICOL CARBON SOLID does not absorb water, does not expand or contract, is resistant to chemicals and is not susceptible to decay. Its high strength allows for an even, rigid base which significantly increases the working lifespan of the entire thermal insulation system. XPS TECHNONICOL CARBON SOLID is specially tailored for increased strength.

The extruded polystyrene foam TECHNONICOL CARBON SOLID is one of the most high tensile thermal insulation materials. Its strength of up to 1000 kPa and its low thermal conductivity make this material highly popular in the construction of roads, airfields and tunnels, launch sites, parking areas, and other constructions with increased requirements due to constant or temporary loads.

The production process of XPS TECHNONICOL CARBON SOLID makes use of nanoscale carbon particles. Nanocarbon reduces the thermal conductivity of the material and increases its strength. Thanks to being saturated with nanocarbon, panels of XPS TECHNONICOL CARBON SOLID acquire a dark silver tone and possess a high energy-efficiency index and high strength.

Scope of application:

Extruded polystyrene foam of the TECHNONICOL CARBON SOLID series is used in general civil construction in thermally insulating foundations, accessible roof areas, load-bearing floors, railways, roads, and landing strips.



Types of material

    Test method

    TECHNONICOL CARBON SOLID 500

    TECHNONICOL CARBON SOLID 700

    TECHNONICOL CARBON SOLID 1000


Basic physical and mechanical properties

PropertyTest method TECHNONICOL CARBON SOLID 500 TECHNONICOL CARBON SOLID 700TECHNONICOL CARBON SOLID 1000
Compressive strength at 10% longitudinal deformation, no less than, kPa GOST 17177 500 700 1000
Thermal conductivity at (255)0C, W/(m*K), no more than GOST 7076-99 0.031 0.033 0.035
Thermal conductivity in operational circumstances "A" and "B", W/(m*K), no more than SP 23-101-2004 GOST 7076-99 0.034 0.036 0.036
Flammability group GOST 30244 G4 G4 G4
Water absorption, no more than, % GOST 15588 0.2 0.2 0.2
Modulus of elasticity, MPa SOYUZDORNII 20 20 20
Vapour permeability coefficient, mg/(m.h.Pa) GOST 25898-83 0.005 0.005 0.005
Heat capacity per unit mass, kJ/(kg.C) SP 23-101-2004 1.50 1.50 1.50
Bend strength, no less than, MPa GOST 17177 0.7 0.7 0.7
Density, kg/m3, no less than GOST 17177 36 50 60
Operational temperature,C From -70 to +75 From -70 to +75 From -70 to +75
Dimensions* Thickness, mmGOST 17177 40,50,60,100 50 50
Length, mmGOST 17177 1180,2380,2500,4000,4200,4500,5000 1180,2380,2500,4000,4200,4500,5000 1180,2380,2500,4000,4200,4500,5000
Width, mmGOST 17177 580,600 580,600 580,600

*- the presence of an “L”-edge prevents the appearance of “thermal bridges” and improves fastening. A special “S”-edge cut is also possible.

— edges are for installing thermal insulation in transport infrastructure subgrades.

— panels of other sizes can be made by agreement with the customer.

Packaging information:

The panels are packaged in a UV-resistant membrane and delivered on pallets

Installation:

Refer to “Installation and Design Manual for TechnoNICOL Corporation Roofing” Refer to “Installation and Design Manual for Thermal Insulation Layers Using Extruded Polystyrene Foam ‘TECHNONICOL XPS’ Panels in Road Constructions”.

Storage:

Panels of XPS TECHNONICOL CARBON SOLID can be stored under cover protecting them from atmospheric precipitation and sunlight. During storage under cover, the panels must be laid on pallets, stands, or slats.

Panels of XPS TECHNONICOL CARBON SOLID can be stored in the open air in special packaging protecting them from external atmospheric effects.

Precautionary measures:

Keep away from fire. Chemically unstable on contact with petrol, organic solvents, and bituminous cement with a high organic solvent content.
