TECHNONICOL CARBON SAND

TECHNONICOL CARBON SAND

OS 72746455-3.3.1-2012

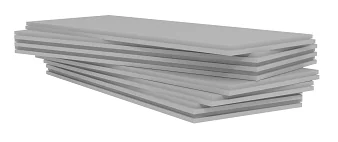

XPS TECHNONICOL CARBON SAND is a form of thermal insulation panel made from extruded polystyrene foam, specially designed for use as an inner core in thermal insulation panels of various types (along the lines of a sandwich construction) or in composite materials.

The product is easily cut, is processed on lathes and has optimal dimensions. For this line of products, the manufacturer has made special allowances in geometric dimensions.

Thanks to the additives used and the special structure of the material, when breaking it on the lathes there is no “through screening” effect, adhesive costs in gluing the sandwich are minimal.

Scope of application:

The extruded polystyrene foam TECHNONICOL CARBON SAND is released specially for manufacturers of various sandwich-panels. Basic application of the material: PVC-Panels for window structures. The product can also be used in the manufacturer of vans, concrete panelling, doors, medical equipment, composite facades and facing materials, and advertising structures



Types of material

    Test method

    TECHNONICOL CARBON SAND MON

    TECHNONICOL CARBON SAND VAN

    TECHNONICOL CARBON SAND PVC


Basic physical and mechanical properties

PropertyTest methodTECHNONICOL CARBON SAND MONTECHNONICOL CARBON SAND VANTECHNONICOL CARBON SAND PVC
Dimensions* Thickness at the edge no less than, mm GOST 17177 50,60,100 30,40,50,60,80 22,30,100
Length no less than, mm GOST 17177 2360,3000,3010,3030,3040 2360,3000,3010,3030,3040 2360,3000,3010,3030,3040
Width no less than, mm GOST 17177 600 600 600
Surface type TS smooth machined** machined**
Panel curve no more than, mm GOST 17177 2 2 2
Density, kg/m3, no less than GOST 17177 28 28 28
Compressive strength at 10% longitudinal deformation, no less than, kPa GOST 17177 200-300 200-300 200-300
Thermal conductivity in (255)0C, W/(m*K), no more than GOST 7076-99 0.030 0.030 0.030
Thermal conductivity in operational circumstances "A" and "B", W/(m*K), no more than SP 23-101-2004 GOST 7076-99 0.036 0.036 0.036
Bend strength, no less than, MPa GOST 17177 0.30-0.70 0.30-0.70 0.30-0.70
External form GOST 17177 cracks, beads and waves prohibited cracks, beads and waves prohibited cracks, beads and waves prohibited
Water absorption, no more than, % GOST 15588 0.2 0.2 0.2
Flammability group GOST 30244 G4 G3/G4 G4
Vapour permeability coefficient, mg/(m.h.Pa) GOST 25898-83 0.010 0.010 0.010
Operational temperature,C OS from -70 to +75 from -70 to +75 0.010

*- panels of other sizes can be made by agreement with the customer.

**- panels with special grooves can be made

Packaging information:

The panels are packaged in stretch plastic and delivered on wooden pallets 240×240 cm. in size.

Installation:

In accordance with the regulatory documentation of the sandwich-panel manufacturers.

Storage:

XPS TECHNONICOL CARBON SAND panels can be stored under cover protecting them from atmospheric precipitation and sunlight. During storage under cover, the panels must be laid on pallets, stands, or slats.

XPS TECHNONICOL CARBON SAND can be stored in the open air in special packaging protecting them from external atmospheric effects.

Precautionary measures:

Keep away from fire. Chemically unstable on contact with petrol, organic solvents, and bituminous cement with a high organic solvent content.
