TECHNONICOL CARBON PROF SLOPE

TECHNONICOL CARBON PROF SLOPE

OS 72746455-3.3.1-2012

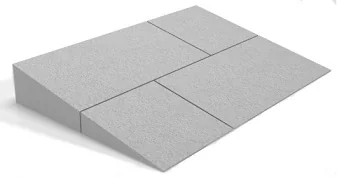

TECHNONICOL CARBON PROF SLOPE is a set of panels with a slope of 1.7% (panels A and ), 3.4% (panels J and K) and 8.3% (panel ), cut from extruded polystyrene with a thickness of 40 mm, 80 mm, and 70 mm. It is used for creating slopes on a roof.

Scope of application:

  1. Establishing slopes on a roof, increasing a slope or changing the direction of a water flow;
  2. Installing roof sloping in a valley gutter to water intake funnels;
  3. Creating slopes (valleys) at ventilation shafts and roof lights;
  4. Creating an additional slope for removing water from a parapet (counter-slope).



The prevailing problems with the lack of slopes on roofs



  • The operational lifespan of any roof can be significantly increased with the creation of optimal slopes.



One of the main causes of reductions in the operational lifespan of roof coverings is due to the formation of stagnant zones (puddles) on the roof surface. This problem is related to failing to establish or incorrectly establishing slopes and counter-slopes on a roof. Repeated and alternating processes of the freezing and melting of water in stagnant zones results in premature failure of a damp-proof covering.



  • The establishment of a vegetation cover in stagnant zones.



Stagnant zones create ideal conditions for the arrival of a vegetation covering: seeds carried through the air settle in the advantageous conditions in stagnant zones. This results in damage by the roots of plants to the base damp-proof covering and, as a result, to the premature failure of the entire roof construction.



  • The problems of traditional solutions.



Traditional solutions for creating slopes and counter-slopes include the use of cheap particulate insulators (expanded clay, perlite) or light concrete mixtures (expanded polystyrene concrete, expanded clay concrete, perlite concrete).

The use of particulate insulators is fraught with the problem of the material being disturbed, with distortion of the projected slope to follow. Apart from that, large enough granules of particulate insulators (20 mm) prevent a smooth fade in to the slope. The use of light concrete mixtures leads to additional load on the base, an exaggeration of flexing of the load-carrying structure, and increases the cost of the whole roofing system. In roofs with a concrete load-bearing base, the establishment of slopes using traditional methods implies the use of wet-mix processes (watering expanded clay with cement, establishing slopes out of light concrete). All of this complicates reconstruction and establishment works on a roof in negative temperatures.

Various panel insulators are also used for establishing a slope on a roof, which are, with the help of cutting instruments (for example, hand-saws, saws, angle grinders), processed for further use as a sloping layer. Carrying out these works is connected to high costs in terms of time, finances, labour, et c.

CONCLUSION: to obtain the required slope, a cost-effective, rigid, sloping panel must be used. As roof-building practice shows, the optimal slope on a roof should amount to no less than 1.5%, the counter-slope — from 3%.

The application of TECHNONICOL CARBON PROF SLOPE panels provides a means of solving the problem of stagnant zones connected with the establishment of a slope on a roof, increasing a slope, changing the direction of a water flow, establishing roof sloping in a valley gutter to water intake funnels, creating slopes (valleys) at ventilation shafts and roof lights, and creating an additional slope for removing water from a parapet (counter-slope).

Using TechnoNICOL’s slope or counter-slope creation system TECHNONICOL CARBON PROF SLOPE, you gain additional advantages:



  • A reduction of stress on the base owing to the use of low-thickness extruded polystyrene panels;
  • A lack of „wet” processes in the course of carrying out works on establishing slopes and counter-slopes;
  • A significant reduction in labour expenses on creating slopes;
  • A reduction in the time required to carry out works.



Establishing a sloping layer from TECHNONICOL CARBON PROF SLOPE tapered panels cannot fully replace the base thermal insulation layer, required by thermotechnical calculations, due to the variability of the layer’s thickness, in spite of the fact that it is produced from highly efficient thermal insulation material.

Applying a roof slope of tapered thermal insulation has an unarguable advantage — it speeds up and simplifies the installation of a roof even in the winter. Using a sheet-backing coat of flat sla­te and tapered thermal insulation eliminates „wet” processes from the operating cycle, and also time costs on drying and matur­ing couplings. Extruded polystyrene foam insulation has  closed-­cell structure is unaffected by moisture during roof install­ation. This simplifies laying and applying it to the roof, which is particularly relevant in Russian construction conditions.



Types of material

    Test method

    Panel (1,7%)

    Panel (1,7%)

    Panel J (3,4%)

    Panel K (3,4%)

    Panel (8,3%)

    CARBON PROF 250 (Spacer panel)


Basic physical and mechanical properties

PropertyTest method Panel (1,7%)Panel (1,7%)Panel J (3,4%)Panel K (3,4%)Panel (8,3%) CARBON PROF 250 (Spacer panel)
Compressive strength at 10% longitudinal deformation, no less than, kPa GOST 17177 250 250 250 250 250 250
Thermal conductivity at (255)0C, W/(m*K), no more than GOST 7076-99 0.028 0.028 0.028 0.028 0.028 0.028
Thermal conductivity in operational circumstances "A" and "B", W/(m*K), no more than SP 23-101-2004 GOST 7076-99 0.034 0.034 0.034 0.034 0.034 0.034
Water absorption, %, no more thanGOST 15588 0.2 0.2 0.2 0.2 0.2 0.2
Flammability group GOST 30244 G4, G3* G4, G3* G4, G3* G4, G3* G4, G3* G4, G3*
Density, kg/m3, no less thanGOST 17177 28 28 28 28 28 28
Dimensions* Length, mm 1200 1200 600 600 600 580
Width, mm 600 600 1200 1200 1200 1180
Thickness, mm from 10 to 30 from 30 to 50 from 10 to 30 from 30 to 50 from 10 to 60 40, 50
Operational spectrum, TS From -70 to +75 From -70 to +75 From -70 to +75 From -70 to +75 From -70 to +75 From -70 to +75

*To order

Packaging information:

The panels are packaged in a UV-resistant membrane and delivered on pallets.

Installation:

In accordance with “Installation and Design Manual for Single-layer Roofs with TechnoNICOL Corporation Polymer Membranes, 3rd edition, 2010”

In accordance with “Establishment and Design manual of Roofs with TechnoNICOL Roofing Company Bituminous-polymer Materials”

Storage:

XPS TECHNONICOL CARBON PROF SLOPE plates can be stored under cover protecting them from atmospheric precipitation and sunlight. During storage under cover, the panels must be laid on pallets, stands, or slats.

XPS TECHNONICOL CARBON PROF SLOPE plates can be stored in the open air in special packaging protecting them from external atmospheric effects.

Precautionary measures:

Keep away from fire. Chemically unstable on contact with petrol, organic solvents, and bituminous cement with a high organic solvent content.
