TehnoNIKOL fireproos slab for door

TehnoNIKOL fireproos slab for door

Application areas

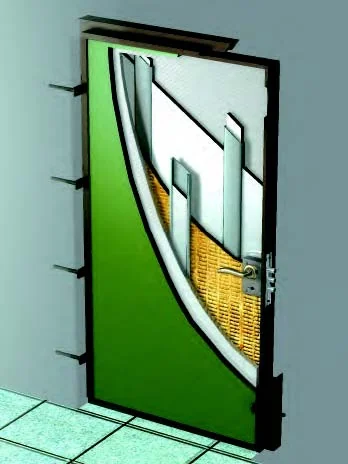

– Insulation of fireproof doors.
– Filler for fireproof doors with different fire resistance limits.

Description of material

Fireproof slab for insulation of the TECHNONICOL doors are nonflammable, heat- and sound insulating slabs made of basalt rock stonewool. It can be manufactured also with a covering of aluminum foil or fiberglass mat.

Storage

The TECHNONICOL FIREPROOF SLAB FOR DOOR ISULATION must be stored in covered warehouses. Storage under an awning protecting the slabs from atmospheric precipitation is permitted. When stored, slabs should be laid in containers or in piles on pallets or linings. The piling height during storage should not exceed 2 m.







Types of material

    Fireproof slab for TechnoNICOL 110 door insulation

    Fireproof slab for TechnoNICOL 190 door insulation


Basic physical and mechanical properties

PropertyFireproof slab for TechnoNICOL 110 door insulationFireproof slab for TechnoNICOL 190 door insulation
Density, kg/m3110 190
Thermal conductivity, W/m*K 100,038 0,045
Flammability group*KM0 (NG) KM0 (NG)
Length, mm 1200 1200
Thickness, mm40-200 40-200
Width**, mm600,1200 600,1200

* Flammability group for products with foil coating — KM1 (G1).

** In coordination with the customer a slab with the dimensions 12002400 mm on pallets can be produced.
