TECHNONICOL slab

TECHNONICOL slab

Application areas

To be used for heat insulation of air ducts, gas pipes, electrical filters, tanks, boilers, processing equipment, flat vertical and horizontal surfaces, furnaces, in various industries (except catering) and the equipment of engineering systems in housing, civil and industrial construction.

Description of material

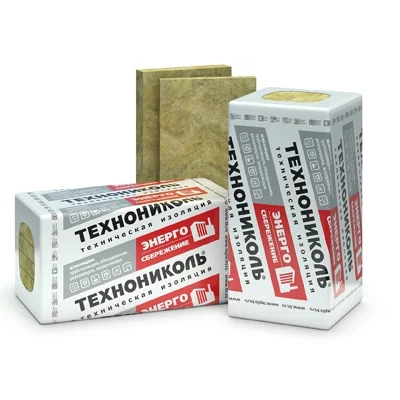

TECHNONICOL slab is a rigid slab made of stonewool. The slabs are made of basalt rock stonewool. One side of the mat can be laminated using reinforced aluminum foil or a fiberglass mat.

Storage

The slabs must be stored in covered warehouses. Storage under an awning protecting the slabs from atmospheric precipitation is permitted. When stored, slabs should be laid in containers or in piles on pallets or linings. The piling height during storage should not exceed 2 m.





Types of material

    TECHNONICOL 40 slab

    TECHNONICOL 60 slab

    TECHNONICOL 90 slab

    TECHNONICOL 120 slab

    TECHNONICOL 150 slab

    TECHNONICOL 180 slab


Basic physical and mechanical properties

PropertyTECHNONICOL 40 slabTECHNONICOL 60 slabTECHNONICOL 90 slabTECHNONICOL 120 slabTECHNONICOL 150 slabTECHNONICOL 180 slab
Sealing coefficient, Ks*1 1 1 1 1 1
Thermal conductivity, W/m*K 100,034 0,033 0,033 0,034 0,035 0,035
250,036 0,035 0,036 0,036 0,037 0,037
1250,055 0,053 0,051 0,050 0,051 0,051
Water absorption at full immersion, %, no more than1,5 1,5 1,5 1,5 1,5 1,5
Flammability group**KM0 (NG) KM0 (NG) KM0 (NG) KM0 (NG) KM0 (NG) KM0 (NG)
Application temperature, from 180 up to +550 from 180 up to +550 from 180 up to +670 from 180 up to +700 from 180 up to +750 from 180 up to +750
Basic density, kg/m340 60 90 120 150 150
Length, mm 1200 1200 1200 1200 1200 1200
Width, mm 600; 1200 600; 1200 600; 1200 600; 1200 600; 1200 600; 1200
Thickness, mm40-200 40-200 40-200 40-200 40-200 40-200

*According to Construction Codes and Regulation (SNiP) 41-03-2003 "Thermal insulation of equipment and pipelines," it is not a sealing material.

**Flammability group for products with foil coating — KM1 (G1).
