TECHNONICOL MAT

TECHNONICOL MAT

Application areas

To be used for heat insulation of air ducts, gas pipes, electrical filters, tanks, boilers, processing and power equipment, flat vertical and horizontal surfaces, in various industries (except for catering) and the equipment of engineering systems in housing, civil and industrial construction, heat networks, main and industrial pipelines.

Description of material

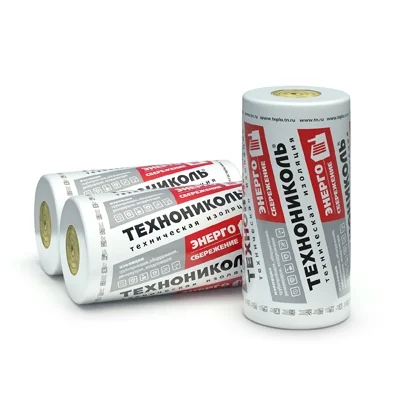

TechnoNICOL mat is a mat made of stonewool without broaching. Mats are made of waterproofing basalt rock stonewool. Alu-foil might be covered from one side.

Storage

Store in a dry place on pallets or in separate rolls.





Basic physical and mechanical properties

PropertyTECHNONICOL 40 Mat
Sealing coefficient, Ks1,35-1,2*
Density, kg/m340
Thermal conductivity, W/m*K 100,034
250,036
1250,059
3000,117
Water absorption at full immersion, %, no more than TECHNONCOL is non-combustible material, fi re dangers rating - KM0. Melting point of fibers is above 1000C Mats with cover - KM1. 1,5
Flammability groupNG (KM0)**
Application temperature, from -180 up to +570
Length, mm 2500-5000
Width, mm 1200
Thickness, mm40-100

According to Construction Codes and Regulation (SNiP) 41-03-2003 "Thermal insulation of equipment and pipelines"

**Classification according to GOST 30244-94 and Construction Codes and Regulation (SNiP) 21-03-97 (Classifi cation according to Technical Firesafety Regulation Practices - Federal Law dated July 22, 2008), for non-foiled products. For mats covered by reinforced aluminum foil – G1 (KM1).
