TECHNONICOL lamella mat

TECHNONICOL lamella mat

Application areas

Heat- and vapor insulation of air ducts, ventilating equipment, tanks, and pipelines with a diameter more than 230 mm and on flat surfaces. Used in civil and industrial applications for new construction and reconstruction of various buildings and structures. It is used at a temperature of insulated surfaces up to +250°C.

Description of material

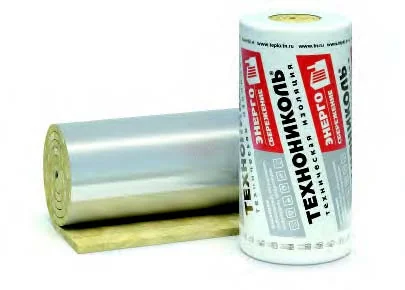

TECHNONICOL Lamella mat is a weak-flammable, heatand sound insulating mat formed from stonewool bricks glued to reinforced aluminum foil. The product has enhanced compression strength in comparison with standard mats and smaller deformation during installation. The standard mat is covered by reinforced aluminum foil.

Storage

Store in a dry place on pallets or in separate rolls. Mats are to be placed standing in no more than two rows.





Types of material

    TECHNONICOL 35 lamel mat

    TECHNONICOL 50 lamel mat


Basic physical and mechanical properties

PropertyTECHNONICOL 35 lamel matTECHNONICOL 50 lamel mat
Density, kg/m335 50
Thermal conductivity, W/m*C 250,039 0,039
1250,042 0,042
3000,062 0,062
Compressibility, % not more10 10
elasticity, %, no less than 90 90
Flammability group for products without foil coveringKM1 (G1) KM1 (G1)
Length, mm 2500-12000 2500-12000
Width, mm 1200 1200
Thickness, mm40-200 40-200
