Application areas
Waterproofing of roofs. Vaporproofing of roofs.
Description of material

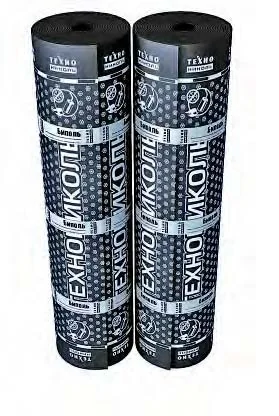

Bipole is a waterproofing sheet produced by two-sided installation of a polymer-bitumen binder on a dense rot-proof base. The material is ommended for installation of roof cladding and for use as vaporproofing.
Bipole K — coarse-grained dressing compound from the face protects the material from sunlight. Used as the top layer of roof cladding.
Bipole P is produced with a polymer fi lm that is used as a protective layer. It is used for vaporproofi ng and as the bottom layer of roof cladding.
Bipole can be used in all climatic zones (as determined in Construction Codes and Regulation (SNiP) 23-01-99*).
Method of application
The material is welded on a prepared surface using a gas burner. Material application: according to the Manual for Designing and Installation of Roofs Made of Bitumen Materials Manufactured by the TechnoNICOL Company.
Storage
Store vertically, in a place protected from direct sunlight.
Service life — 10-15 years
Types of material
EPP
TPP
HPP
EKP
TKP
HKP
Specifications:
| Property | EPP | TPP | HPP | EKP | TKP | HKP | |
| Mass of 1 m2, kg, (±0.25 kg) | 3,0 | 3,0 | 3,0 | TKP HKP | 4,0 | 4,0 | |
| Longitudinal/transverse breaking load, N, not less than | polyester | 343/- | - | - | 343/- | - | - |
| fiberglass | - | 800/900 | - | - | 800/900 | - | |
| fiberglass mat | - | - | 294/- | - | - | 294/- | |
| Bend point on R=25 mm beam, °C, no more than | -15 | -15 | -15 | -15 | -15 | -15 | |
| Heat endurance, °С, not less than | 85 | 85 | 85 | 85 | 85 | 85 | |
| Protective covering type | on the top | film without logo | film without logo | film without logo | granulated material, slate | granulated material, slate | granulated material, slate |
| on welded-on side | film with logo | film with logo | film with logo | film with logo | film with logo | film with logo | |
| Length / width, m | 15х1 | 15х1 | 15х1 | 10х1 | 10х1 | 10х1 |
