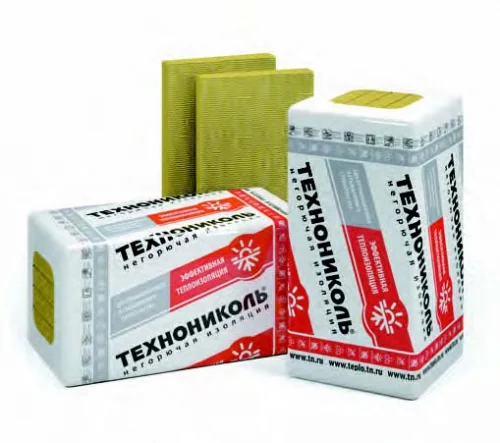

TECHNOVENT

TECHNOVENT

Application areas

TECHNOVENT slabs are designed to be used in industrial and civil construction as a heat- and sound insulating layer in ventilated facade systems.

Description of material

TECHNOVENT are nonflammable, waterproofing, heatand sound insulating slabs made of basalt rock stonewool with a low-phenol binder.

Storage

The slabs must be stored in covered warehouses. Storage under an awning protecting the slabs from atmospheric precipitation is permitted. slabs during storage should be laid in containers or in piles on pallets or linings. The piling height during storage should not exceed 2 m.



Types of material

    TECHNOVENT STANDARD

    TECHNOVENT OPTIMA

    TWO-LAYER PROF


Basic physical and mechanical properties

PropertyTECHNOVENT STANDARDTECHNOVENT OPTIMATWO-LAYER PROF
Interlaminar strength, kPa, not less than3 5 8
Flammability gradeNG NG NG
Thermal conductivity, W/m*C 250,036 0,036 0,047
A0,038 0,038 0,044
B0,039 0,040 0,047
Compressibility, % not more2 2 2
Compression strength at 10% deformation, kPa, not less than10 12 15
Vapor permeability, mg/(m*h*Pa), not less than0,3 0,3 0,3
Humidity by weight, %, no more than0,5 0,5 0,5
Water absorption by volume, %, no more than1,5 1,5 1,5
Content of organic substances, %, no more than3,0 3,0 3,0
Density, kg/m37288 81-99 90-110
Length, mm 1000, 1200 1000, 1200 1000, 1200
Width, mm 500, 600 500, 600 500, 600
Thickness (with increments of 10 mm), mm40-200 40-200 40-200
