CHNOROOF N VENT

ТЕCHNOROOF N VENT

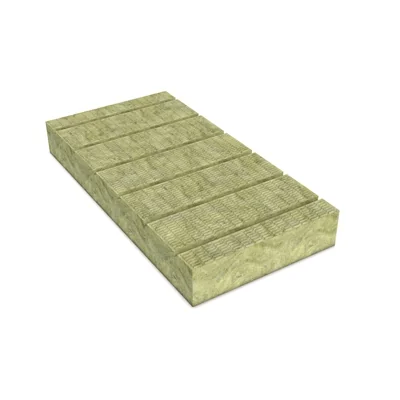

CHNOROOF H VENT — nonflammable, water-repelling, heat- and sound insulating plates made of Stone wool on the basis of rocks of basalt group.

The plates are used in civil and industrial construction as a heat insulating layer in new constructions and reconstructions of different types of buildings. TECHNOROOF H VENT plates are designed for heat insulation of flat heat insulating roofs with the vented system of canals. The plates are advisable to use with plates TECHNOROOF B.











Types of material

    CHNO-ROOF H30 VENT

    CHNO-ROOF H35 VENT


Basic physical and mechanical properties

PropertyCHNO-ROOF H30 VENT CHNO-ROOF H35 VENT
Average Density, kg/m3100-130 105-135
Compressive Resistance at 10% deformation, kPa, not less30 35
Combustibility, degreeNG NG
hermal Conductivity at 25 , W/(m.C) not more0,038 0,037
hermal Conductivity at A-conditions, W/(m.C) not more0,041 0,040
hermal Conductivity at B-conditions, W/(m.C) not more0,042 0,041
Vapor Permeabilty, mg/(m.c. Pa) not less0,3 0,3
Mass Humidity, % not more0,5 0,5
Volume Water Absorption, % not more1,5 1,5
Organic Content, % not more4,5 4,5
