CHNOROOF N

ТЕCHNOROOF N

Application areas

TECHNOROOF N slabs are designed to be used as the basic thermal-insulation layer in coverings made of reinforced-concrete or metal profile-shaped flooring with all types of roof cladding, including without protective underlayments, in civil and industrial applications in new construction and reconstruction of various buildings and structures.

Description of material

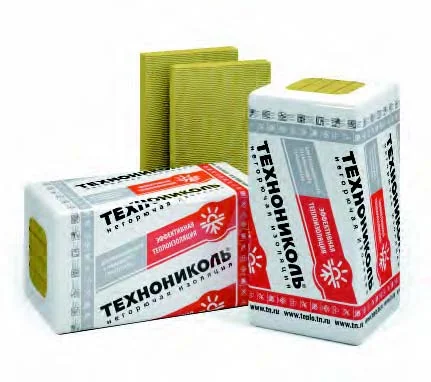

TECHNOROOF N are nonflammable, waterproofing, heat- and sound insulating slabs made of basalt rock stonewool with a low-phenol binder.

Storage

The slabs must be stored in covered warehouses. Storage under an awning protecting the slabs from atmospheric precipitation is permitted. slabs during storage should be laid in containers or in piles on pallets or linings. The piling height during storage should not exceed 2 m.



Types of material

    TECHNOROOF N30

    TECHNOROOF N25

    TECHNOROOF N35

    TECHNOROOF N40


Basic physical and mechanical properties

PropertyTECHNOROOF N30TECHNOROOF N25TECHNOROOF N35TECHNOROOF N40
Compression strength at 10% deformation, kPa, not less than30 30 35 40
Concentrated load, N, not less than400 400 450 500
Flammability gradeNG NG NG NG
Thermal conductivity, W/m*C 10 0,034 0,037
250,038 0,038 0,037 0,039
A0,041 0,039 0,040 0,042
B0,042 0,041 0,041 0,045
Vapor permeability, mg/(m*h*Pa), not less than0,3 0,3 0,3 0,3
Humidity by weight, %, no more than0,5 0,5 0,5 0,5
Water absorption by volume, %, no more than1,5 1,5 1,5 1,5
Content of organic substances, %, no more than4,5 4,5 4,5 4,5
Density, kg/m3100-130 100-130 105-135 110-140
Length, mm 1000, 1200 1000, 1200 1000, 1200 1000, 1200
Width, mm 500, 600 500, 600 500, 600 500, 600
Thickness (with increments of 10 mm), mm50200 50200 50200 50200
