CHNOROOF

ТЕCHNOROOF

Application areas

To be used as the basic heat-insulation layer in coverings made of reinforced-concrete or metal profile-shaped flooring with all types of roof cladding, including without protective underlayments, in civil and industrial applications in new construction and reconstruction of various buildings and structures.

Description of material

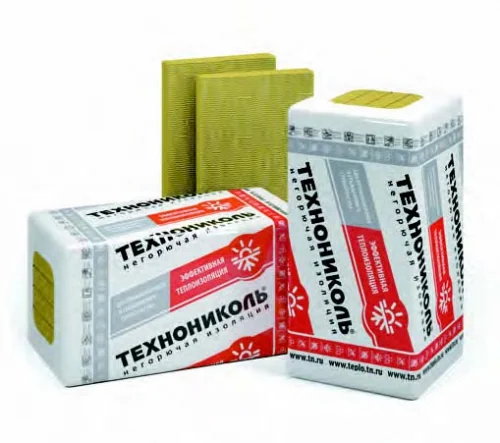

TECHNOROOF are nonflammable, waterproofing, heatand sound insulating slabs made of basalt rock stonewool with a low-phenol binder.

Storage

The slabs must be stored in covered warehouses. Storage under an awning protecting the slabs from atmospheric precipitation is permitted. slabs during storage should be laid in containers or in piles on pallets or linings. The piling height during storage should not exceed 2 m.



Types of material

    TECHNOROOF 45

    TECHNOROOF 50

    TECHNOROOF 60

    TECHNOROOF 70


Basic physical and mechanical properties

PropertyTECHNOROOF 45TECHNOROOF 50TECHNOROOF 60TECHNOROOF 70
Compression strength at 10% deformation, kPa, not less than45 50 60 70
Concentrated load, N, not less than550 600 650 600
Flammability gradeNG NG NG NG
Thermal conductivity, W/m*C 10 0,036 0,037 0,038
250,038 0,039 0,039 0,040
A0,041 0,043 0,046 0,043
B0,042 0,046 0,049 0,047
Interlaminar strength, kPa, not less than10 10 12 12
Vapor permeability, mg/(m*h*Pa), not less than0,3 0,3 0,3 0,3
Humidity by weight, %, no more than0,5 0,5 0,5 0,5
Water absorption by volume, %, no more than1,5 1,5 1,5 1,5
Content of organic substances, %, no more than4,5 4,5 4,5 4,5
Density, kg/m3126154 145-175 155185 165-195
Length, mm 1000, 1200 1000, 1200 1000, 1200 1000, 1200
Width, mm 500, 600 500, 600 500, 600 500, 600
Thickness (with increments of 10 mm), mm50110 60110 60110 60110
