ТЕCHNOFAS

Application areas

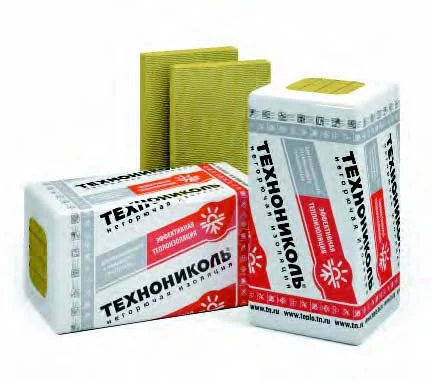

TECHNOFAS are nonflammable, waterproofing, heatand sound insulating slabs made of basalt rock stonewool with a low-phenol binder.

Description of material

TECHNOFAS slabs are designed for the use in civil and industrial construction as heat- and sound insulation in external insulation systems for walls with a protectivedecorative layer made of a thin plaster coat.

Storage

The slabs must be stored in covered warehouses, separated by brands and dimensions. Storage under an awning protecting the slabs from atmospheric precipitation is permitted. Slabs during storage should be laid in containers or in piles on pallets or linings. The piling height during storage should not exceed 2 m.



Basic physical and mechanical properties

PropertyTECHNOFAS
Interlaminar strength, kPa, not less than15
Flammability gradeNG
Thermal conductivity, W/m*C 250,038
A0,040
B0,042
Compression strength at 10% deformation, kPa, not less than45
Vapor permeability, mg/(m*h*Pa), not less than0,3
Humidity by weight, %, no more than0,5
Water absorption by volume, %, no more than1,0
Content of organic substances, %, no more than4,5
Density, kg/m3131159
Length, mm 1000, 1200
Width, mm 500, 600
Thickness (with increments of 10 mm), mm40, 150
