TECHNOBLOCK

TECHNOBLOCK

Application areas

Heat- and sound insulation of various types of sandwich installations, frame walls with various kinds of furnish, including siding. Additionally, the first (internal) heat-insulation layer in the facade systems with an air gap for two-layer thermal insulation.

Description of material

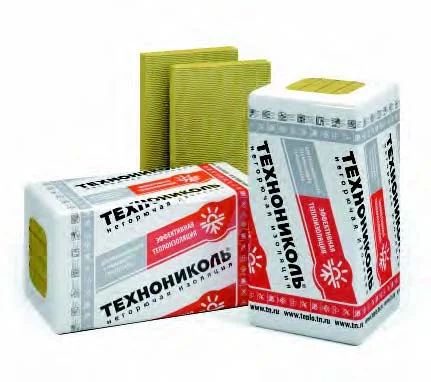

TECHNOBLOK are nonflammable, waterproofing, heat- and sound insulating slabs made of basalt rock stonewool with a low-phenol binder.

Storage

The slabs must be stored in covered warehouses. Storage under an awning protecting the slabs from atmospheric precipitation is permitted. slabs during storage should be laid in containers or in piles on pallets or linings. The piling height during storage should not exceed 2 m.



Types of material

    TECHNOBLOCK STANDARD

    TECHNOBLOCK OPTIMA

    TECHNOBLOCK PROF


Basic physical and mechanical properties

PropertyTECHNOBLOCK STANDARDTECHNOBLOCK OPTIMATECHNOBLOCK PROF
Compressibility, % not more8 8 8
Flammability gradeNG NG NG
Thermal conductivity, W/m*C 100,035 0,034 0,033
250,037 0,036 0,035
A0,039 0,041 0,040
B0,040 0,044 0,043
Vapor permeability, mg/(m*h*Pa), not less than0,3 0,3 0,3
Humidity by weight, %, no more than0,5 0,5 0,5
Water absorption by volume, %, no more than1,5 1,5 1,5
Content of organic substances, %, no more than2,5 2,5 2,5
Density, kg/m340-50 50-60 60-70
Length, mm 1000, 1200 1000, 1200 1000, 1200
Width, mm 500, 600 500, 600 500, 600
Thickness (with increments of 10 mm), mm40-200 40-200 40-200
